Panel Loc

Panel-Loc™ is a low rib (5/8”) panel that is best used for post frame barns and buildings, as well as residential roofing. Panel-Loc™ is available in 26 and 29 gauge steel.

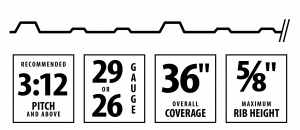

General Specifications

  • Panel rib height: 5/8-inch Tall
  • Panel coverage: 36″ wide
  • Panel length: 26″ to 45′ in .5″ increments
  • Tensile strength: 80,000 psi minimum
  • Substrate: Varies by option; Galvalume®
  • Gauge: 26
  • Recommended roof slope: 3/12 or greater roof slopes and ideal for low pitch commercial roofs

Questions?

For a complete line of trim and accessories, as well as available colors, please give us a call at (269) 683-2723

Category:

Related Files

Testing and Approval Data

  • UL2218 UL Approval, Impact Resistance
  • UL580 UL Approval, Uplift Resistance
  • UL790 UL Approval, Fire Resistance, Class A

Available Options

Thrifty Prime Fluropon®
MCA certification #229SPL #229PPL
26 gauge thickness .0178″ min .0185″ min N/A
29 gauge thickness .0138″ min .015″ min .015″ min
Tensile strength 80,000 psi minimum 80,000 psi minimum 80,000 psi minimum
Substrate Varies Galvalume® Galvalume®
Gauge 26 and 29 26 and 29 29 only
Coating CentralGuard® CentralGuard® Fluropon® 70% PVDF
Primer .1-.2 mils top .2-.3 mils top .2-.3 mils top
Paint thickness .5-.6 mils top .7-.8 mils top .7-.8 mils top
Warranty 20 yr. limited paint integrity 40 yr. paint and 20 yr. Galvalume® substrate 40 yr. paint and 20 yr. Galvalume® substrate
Colors 10 19 1 – Copper Metallic Only
