Central Span
The Central Span™ panel has a traditional flat pan, vertical rib appearance, often preferred by traditional architects for superior appearance and performance. Central-Span™ roofs meet the requirements for a wide range of roof slopes, shapes, loads, weather and related conditions. It has many of the features required for architecturally shaped roofs.

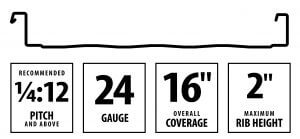

General Specifications
- Standing seam height: 2″
- Panel coverage: 16″
- Panel length: 36″ to 52′ in .5″ increments
- Tensile strength: 50,000 psi minimum
- 16 ENERGY STAR rated Fluropon® colors
- Substrate: Galvalume®
- Gauge: 24 (22ga special order only – contact your sales rep for details)
- Mechanically seamed
- Recommended minimum slope: 1/4 :12 or greater
- Minor striations in the flat.
- Clip has a full 3″ of thermal movement.
- 90° or 180° seam.
- Factory applied sealant.
- One of the highest uplift ratings in the industry.
Questions?
For a complete line of trim and accessories, as well as available colors, please give us a call at (269) 683-2723
Testing and Approval Data
- FM4471 - Foot Traffic Resistance Test (BRS Licensed Test)
- ASTM-E1680 - Air Leakage Test through exterior metal roof panel
- ASTM-E1646 - Water Leakage Test of exterior metal roof panel
- ASTM-E1592 - Structural Test for Roof Systems, 24 gauge
- ASTM-E2140 - Water penetration by static water pressure head
- FL17205.1 Florida Approval, Triple lock over 16ga purlins (NON-HVHZ)
- FL17205.1 Florida Approval, Triple lock over 16ga purlins (NON-HVHZ)
