Central Snap® Standing Seam

Central Snap® is a vertical 1-3/4″ Tall Rib Standing Seam Roof System that is sturdy and fire resistant, making it ideal for architectural and commercial applications. Installation is a snap, and its Galvalume® substrate offers two to four times the corrosion resistance of galvanized steel.  24 gauge flat sheets are also available.

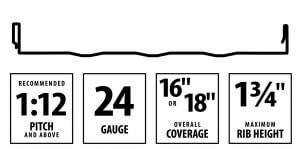

Central Snap® Specification

• 24 Gauge, Standing Sea, Rib Height, 1 3/4-inches Tall
• Fluropon® Paint System with Galvalume® Substrate, AZ-55 Galvalume®
• Panel coverage: Available in 16″ and 18″ coverage with subtle striations between ribs
• Panel length: 36″ to 52′ in .5″ increments
• Tensile strength: 50,000 psi minimum
• Seam sealed with factory-applied hot melt mastic.
• Available with a 1 3/16″ notch on either end of each panel for the ease of turning under; reducing installation labor and costs.
• Recommended minimum slope:  1:12 or greater ( Rated for Low Slope Roofs)
